Wooden Clothes Hanger Semi Auto Production Lines
THIS HANGER
PACKAGE
HANGER COLOR
CUSTOM HANGER
Specification:
This production line designed for those investment that don't have experience workers. use this work line can produce standard hangers by good quality. all the information done by HEAD INT'L. should not OK to be used as commercial way without agree.

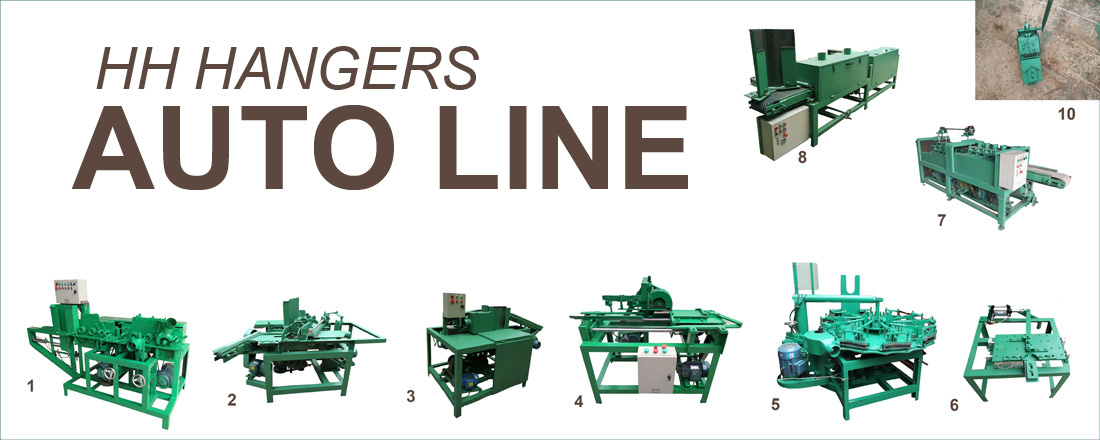

| NO. | MACHINE PIC | NAME | DESCRIPTION | EXPLAIN HAND DRAWING | POWER DESIGNED |
| MH901 | sanding board flat machine. | After bought standard size wooden board from wood supplier. We sand the wooden board first to get rid of the rough and dirty on the wooden board . This Machine can sanding the wooden board from 4 sides (top, bottom, left, right). After the sanding the surface of the wooden board is smooth and ready for future paint process. |
| 11.9KW | |
| MH902 |
| TENON OPEN MACHINE | Clothes Hangers are joint by two pieces of wood, In order to make sure the hanger are strong enough for clothes weight. We open tenons on two pieces of wooden board to joint up , This machine can open tenons on both sides of the standard wooden board. |
| 3.75KW |
| MH903 |
| EDGES ROUGH CUT | After we cut tenons on the standard wooden board, We cut the wooden board into two pieces by certain shape, Got rough edges pieces. |
| 6.75KW |
| MH904 |
| NOTCHES CUT & LENGTH CONTROL | Clothes hangers have sizes. and Might need notches for strips of lady dress. This Machines used to shorten the wooden board to right size. and open notches on hangers shoulder. |
| 3.7KW |
| MH905 |
| EDGES SHAPING | After above steps. The wooden board ready in hanger shaping. We use auto 8 arms machine can shaping 16 pcs the rough pieces into gentle hanger shape which used for 8 hangers . we call this step hanger shaping cycle . |
| 5.5KW |
| MH906 |
| HANGER JOINT | We joint two piece wooden board into hanger, Rough hanger finished. This machine use stable power to joint the tenons together. |
| 11.9KW |
| MH908 | | HANGER BODY FLAT SANDING manual | When we joint two pieces wooden board together. they might not equal on same surface and joint part might left some rought edges. This flat sanding machine can sand the top and bottom the hanger shape. This machine is auto for flat body only. warp hangers need hand sanding. |
| 10.3KW |
| 8 | PAINT GUN | We have two kind of painting way. in order to cover the wooden surface avoid worms and hangers be dirty during usage. We lacquer painted the wooden board. auto painting line is too expensive. So when begin a new production line , we suggest to use paint guns , when there are 3 lines. can buy auto painting line. |
| ||
| MH909 | | AUTO FINISHING SOFT SANDING manual | First paint might not smooth and get dust and totally cover the wooden board. We use this soft sanding machine to sand the lacquer finish, after this machine , the hanger will ready for face lacquer. this machine can be replaced by human. manual sanding is workable. |
| 7.5KW |
| MH910 |
| Hook Assemble | This is manual hook joint machine , when there is only one working line, Manual machine is enough . We also have auto one. |
| Manual |
wooden rack and then wooden board to cover the surface
Rack Package
ABOUT HHANGER
I met same status when I became an international business woman， I was shocked and full of guilty, too. But I did not change my products, I changed my clients. I got my belief that the products should have the reasonable value and to be cherished by the person who bought them. For clothes hangers, Custom order hangers and Eco Friendly hangers are more personality and more valuable, the clients who need customized cloth hangers became our main clients, So we can pay more attention on quality controlling, design, service and products range. We could have more chance to offer eco friendly products , recycling or degradable hangers by professional way. We can pay more attention on waste and cost control to earn reasonable profit. That is story of HHanger.
No matter what, we hope to offer best service to you.
EXTRA SERVICE:
HEAD INT'L will offer free service to help the client order ship and find forwarder to arrange the delivery .
Help the client to buy insurance for the machine.
The Machines are designed easy open style , can be used by push button styles.
Might met problem during usage such as loose or what . The technician of the client should can solve the problem .
In case they met problem need help can send problem video to Head Int'l , We will help to solve the problem .
Hangers production is complex and need pay attention to quality standard, avoid waste and mistake.
We will offer Guide File to help the new factory build a management system.
We also welcome the client send workers to my factory to get training.
We can send out technician to the client factory if necessary.
During production of clothes hanger ,might met problem , we will help to solve .
If really hard to installation new work line. can apply assistance with Head Int'l.
